$419.95
$503.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

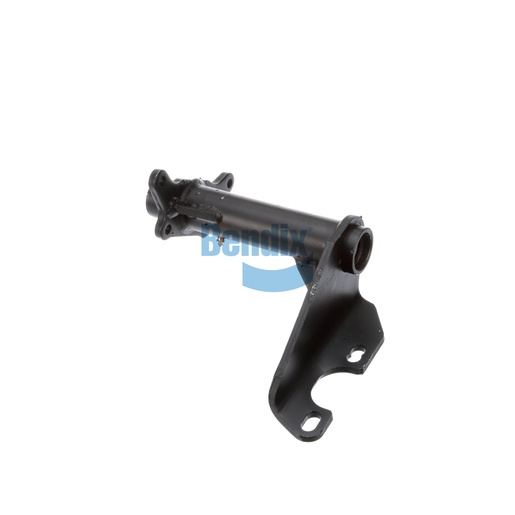

Designed to enhance the performance of your truck's braking system, this bracket assembly provides critical support for air chamber and camshaft components. The triple gusset design ensures maximum strength and stability, enabling your brakes to operate effectively under heavy loads. Built to the high standards expected of Bendix products, this assembly is crafted from durable materials to withstand harsh conditions and prolonged use. Its innovative engineering allows for easy installation and maintenance, making it a practical choice for fleet operators who prioritize efficiency. By investing in this bracket assembly, you ensure the reliability of your braking system, contributing to the overall safety of your vehicle. For genuine Bendix OEM parts, Source One Parts Center is your trusted partner, ensuring quality and performance in every replacement.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Triple
Country of Origin
United States
Weight
14.65 lb
