978619N

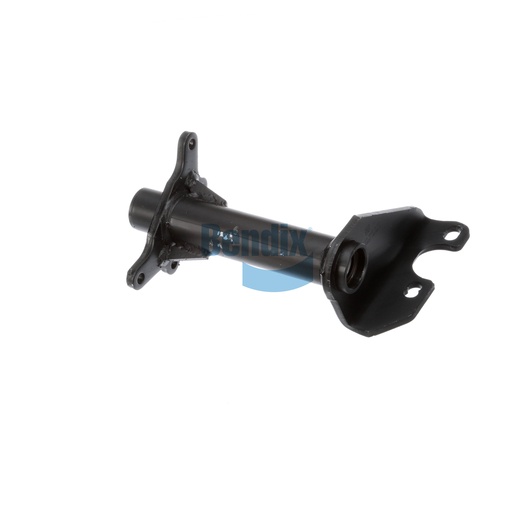

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Elevate your foundation drum brake system with the Bendix bracket assembly, designed for durability and reliability. This essential component supports various brake parts, ensuring a secure and effective braking system for commercial vehicles. The assembly is engineered from high-quality materials to withstand the rigorous demands of heavy-duty applications, enhancing the overall performance of your vehicle. Its robust design contributes to a stable braking experience while minimizing vibrations. Easy to install, this bracket assembly reduces downtime, allowing you to keep your operations running smoothly. For the best in Bendix OEM parts, trust Source One Parts Center to deliver quality and reliability to your fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Triple
Country of Origin
United States
Weight
14.5 lb
