DESCRIPTION

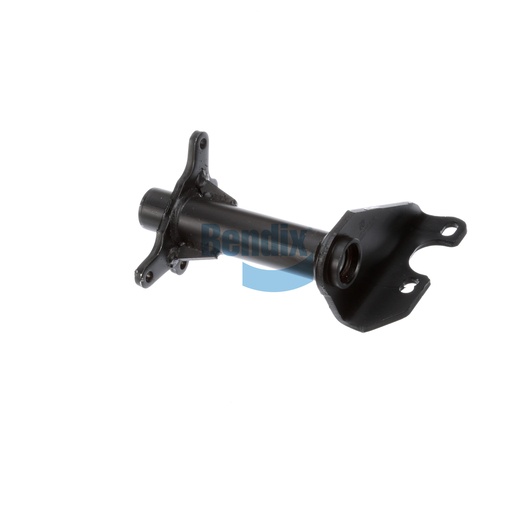

The Bracket Assembly is an essential component for the foundation drum brakes in commercial vehicles, designed to provide stability and support. Weighing 6.5 kg, this assembly features a robust design with triple gussets and durable nylon bushings, ensuring it can withstand heavy-duty applications. Its precise engineering allows for seamless installation, making it a crucial part of maintaining your vehicle's braking system. This bracket is built to enhance safety and performance in demanding conditions. For those seeking genuine Bendix OEM parts, Source One Parts Center is the top choice, known for its extensive inventory and commitment to quality.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Height
292.0 mm (11.5 in)
Length
342.0 mm (13.46 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Triple
Country of Origin
United States
Weight
14.25 lb
