K020355

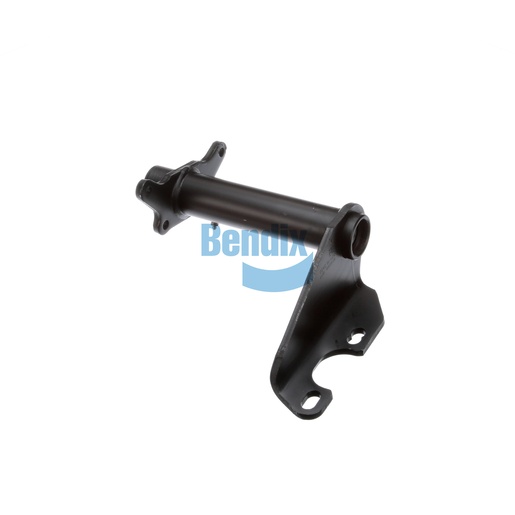

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component for your vehicle's air chamber and camshaft system, providing the structural integrity necessary for effective brake operation. This assembly features a full arm style and is constructed with durable materials that ensure long-lasting performance and reliability. Designed to fit a variety of applications, it simplifies installation and enhances the overall efficiency of your braking system. Regular maintenance and replacement of brackets are crucial for maintaining the performance of your air brake system, ensuring that your vehicle operates safely and effectively. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your best choice, offering unmatched quality and service for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
15.98 lb
