K020766

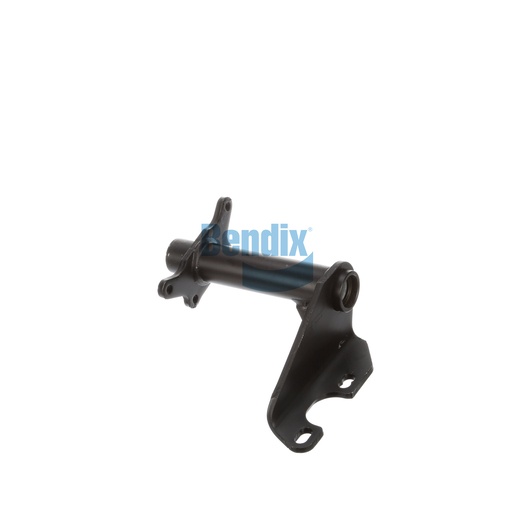

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your brake system with the Bendix Bracket Assembly, designed to provide sturdy support and optimal performance for your braking components. This bracket is built from high-quality materials, ensuring durability and longevity in demanding conditions. Weighing in at 7.3 kg, it is engineered for easy installation and compatibility with various truck models. The bracket's precision design enhances the overall braking efficiency, making it essential for maintaining safety standards. For genuine Bendix OEM parts, Source One Parts Center is your trusted partner in keeping your vehicle on the road.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
102° CCW
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.98 lb
