K020767

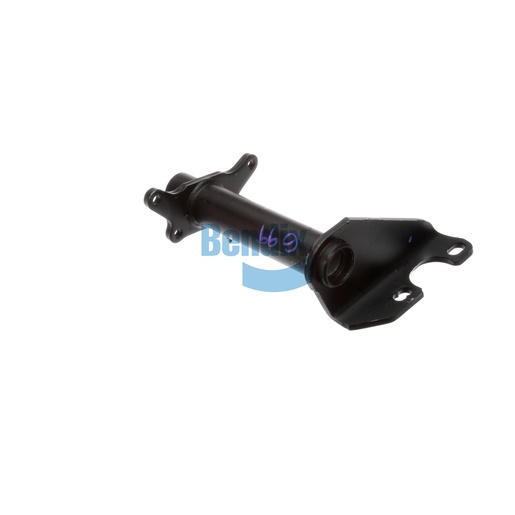

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital part for your foundation drum brakes, ensuring stability and reliability in your braking system. This assembly is designed with precision, featuring a single gusset and nylon bushings for optimal performance. Weighing 7.3 kg, this robust component is easy to install and enhances the overall durability of your braking system. It is engineered for long-term use in demanding applications. For the best selection of genuine Bendix OEM parts, choose Source One Parts Center, your trusted source for commercial vehicle components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
102° CW
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.98 lb
