K021272

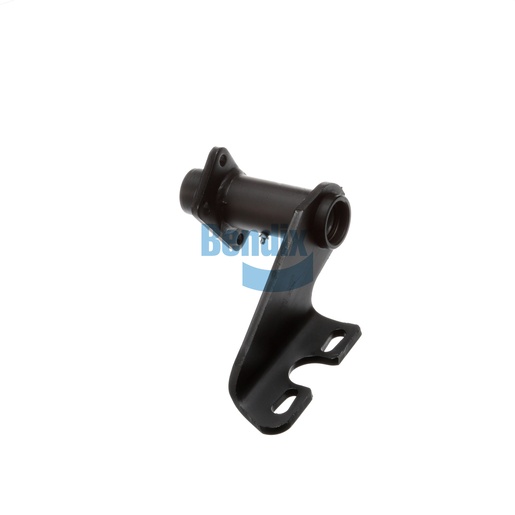

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This bracket assembly from Bendix is designed to provide robust support for your vehicle's braking system, ensuring stability and performance during operation. Manufactured in the United States, it features high-quality materials that withstand the demands of heavy-duty applications. Weighing 4.3 kg, this bracket assembly is engineered for durability and reliability, making it an essential component for maintaining braking efficiency. Its compatibility with various Bendix models ensures a perfect fit and seamless installation. When sourcing genuine Bendix OEM parts, Source One Parts Center is the leading provider, ensuring exceptional quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
32° CCW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.81
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
9.37 lb
