K021273

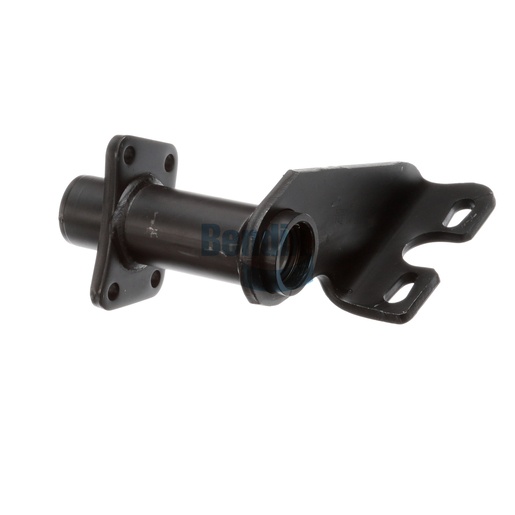

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a vital part of the foundation drum brake system, providing the necessary support for air chambers and camshafts. Engineered with precision, this bracket assembly offers exceptional strength and stability, ensuring that your braking system functions smoothly and effectively. Its innovative design features high-quality materials that resist wear and tear, making it ideal for the rigorous demands of commercial trucking. The bracket is easy to install and compatible with various Bendix components, reinforcing the overall performance of your vehicle's braking system. Choose Source One Parts Center for your Bendix OEM parts to ensure you are investing in quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
32° CW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.81
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
9.37 lb
