K021751

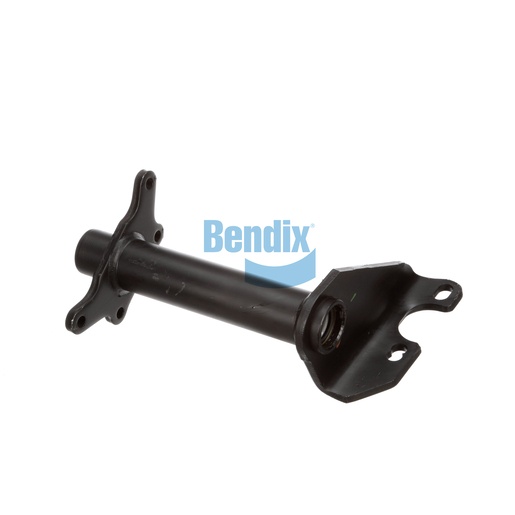

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is essential for securing air chambers and camshafts in your vehicle's braking system, providing stability and support for optimal performance. This robust assembly features a full arm style with nylon and bronze bushings, designed to withstand the rigors of heavy-duty applications. With a net weight of 7.3 kg, it is engineered for durability and easy installation. The precise dimensions ensure compatibility with various setups, making it a versatile choice for fleet operators. Its superior construction not only enhances safety but also extends the lifespan of your braking components. For sourcing high-quality Bendix OEM parts, Source One Parts Center is your reliable partner, committed to delivering excellence in every product.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
16 lb
