$409.95
$491.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

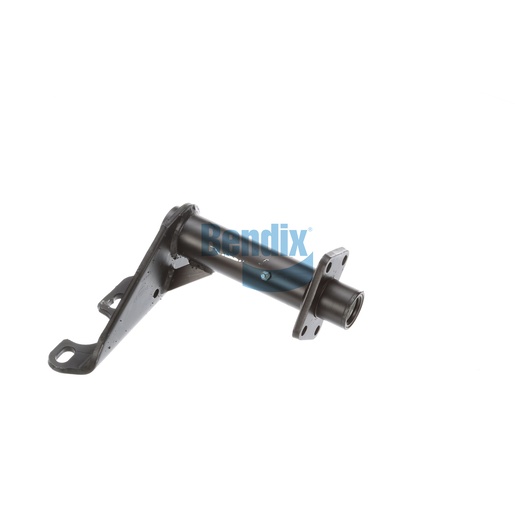

The Bendix Bracket Assembly is a robust and vital component for your truck's foundation drum brakes, providing essential support for air chambers and camshafts. This assembly features high-grade nylon bushings that enhance performance and durability, while its full arm style is designed to optimize strength without adding excessive weight. Weighing 7.3 kg, this bracket assembly is built to withstand the rigors of heavy-duty operations, ensuring that your braking system functions optimally under demanding conditions. For those committed to quality, Source One Parts Center is the premier source for genuine Bendix OEM parts, delivering reliability and performance for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Camshaft Bracket Angle
328° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.98 lb
