K022921

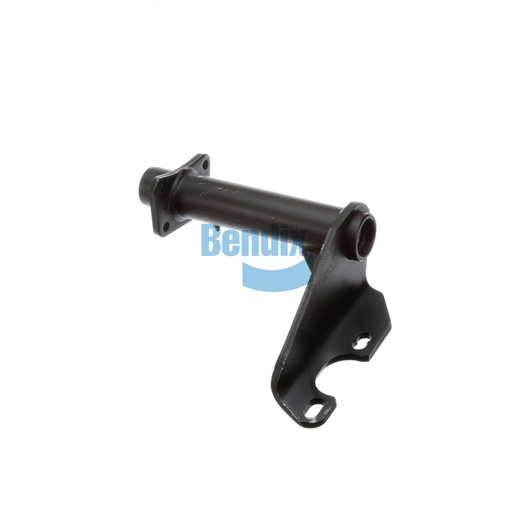

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component for the stability and performance of your commercial vehicle's braking system. This sturdy bracket, weighing 6.4 kg (14.19 lb), is designed with precision to ensure optimal alignment and support for the brake chambers and camshafts. Its robust construction allows it to withstand the rigors of heavy-duty applications, making it a reliable choice for fleet operators focused on safety. The assembly features nylon bushings for enhanced durability, ensuring that your braking system operates efficiently over time. For those in search of genuine Bendix parts, Source One Parts Center is the best choice, offering authentic products and expert assistance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.19 lb
