K022922

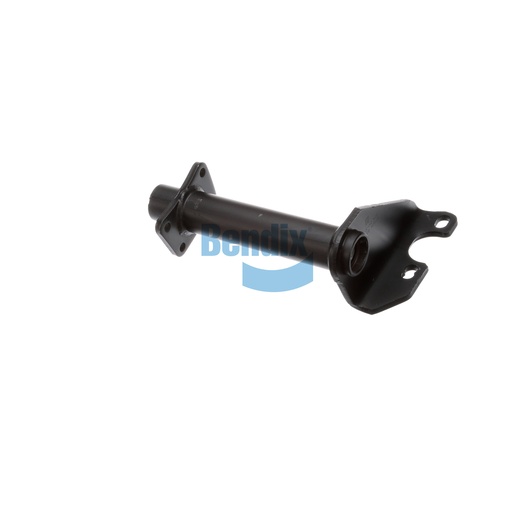

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a crucial component for ensuring the stability and reliability of your commercial vehicle's braking system. This robust bracket is designed to securely hold various brake components in place, maintaining optimal alignment and functionality during operation. Its durable construction is tailored to withstand the demanding conditions of heavy-duty applications, providing peace of mind for fleet operators. Regular inspections and maintenance of your braking system, including the bracket assembly, are essential for preventing potential failures and ensuring safe operation. By investing in genuine Bendix parts, you enhance the safety and performance of your braking system, which is vital for protecting both your vehicle and its cargo. Source One Parts Center is the ideal destination for quality Bendix OEM parts, ensuring you receive reliable components that keep your fleet running efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.29 lb
