K023631

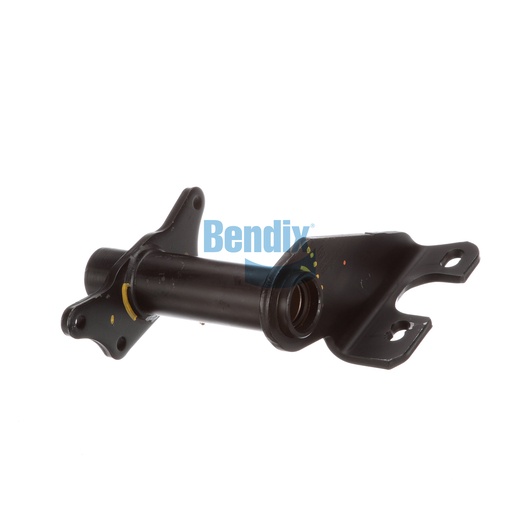

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical component for the proper installation and support of your brake system. Designed specifically for foundation drum brakes, this bracket ensures secure mounting for brake chambers and camshafts, enhancing the overall functionality of the braking system. With a net weight of 7.3 kg, this robust assembly is built to withstand the demanding conditions faced by commercial vehicles. Its durable construction ensures longevity, providing peace of mind for fleet operators. This bracket is essential for maintaining correct alignment and support, which is vital for efficient brake performance. Source One Parts Center is your trusted source for authentic Bendix OEM parts, ensuring you get the best quality for your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
16 lb
