K024706
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

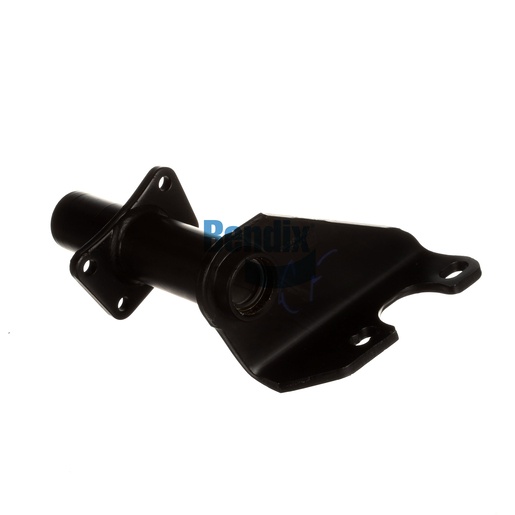

The Bendix Bracket Assembly is a crucial component for maintaining the integrity of your foundation drum brakes. This assembly is designed for durability, constructed from high-quality materials that can withstand the rigors of heavy-duty applications. Weighing 6.0 kg, it features a single gusset and full arm style, ensuring robust support throughout the braking system. Its straightforward installation process makes it ideal for both professional and DIY mechanics. Choose Source One Parts Center for your Bendix OEM parts, where you can find the right components to enhance your vehicle’s performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
72° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.23 lb
