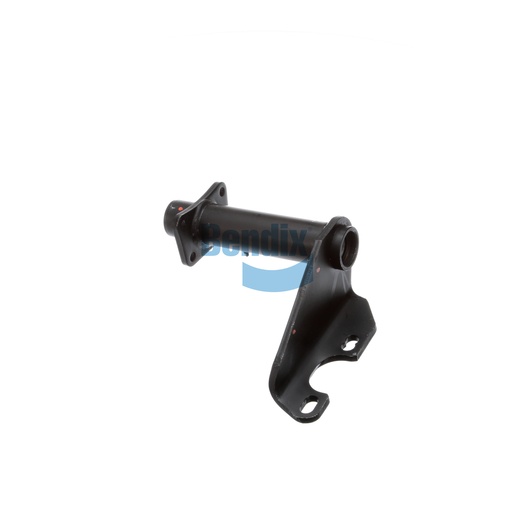

K024707
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly plays a crucial role in the stability and performance of your truck's braking system. Engineered with precision, this full-arm style bracket is constructed from high-quality materials, ensuring longevity and reliability in demanding conditions. With a net weight of 6.0 kg, it provides robust support for air chambers and camshafts, crucial for maintaining optimal braking performance. Its design includes nylon bushings that minimize wear and enhance functionality. This bracket assembly is essential for any maintenance or upgrade to your truck's braking system. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the leading choice for quality and dependability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
830230
Camshaft Bracket Angle
83° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.23 lb
