K024868

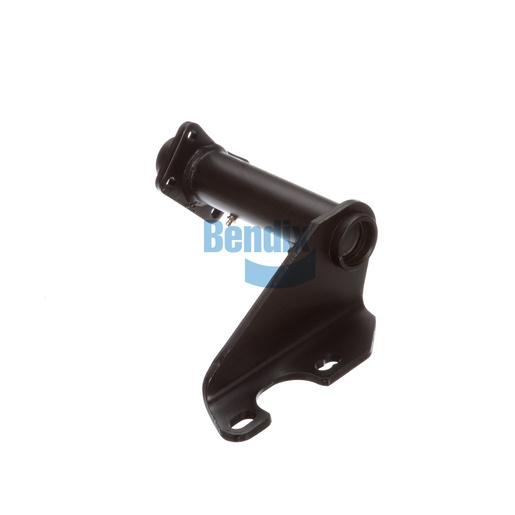

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide essential support for your vehicle's drum brake system. This robust assembly, weighing 6.0 kg, is engineered to withstand rigorous conditions while ensuring that your braking components remain aligned and functional. The assembly features nylon and bronze bushings that enhance durability and reduce wear over time. With precise dimensions and angles designed for optimal fitment, this bracket assembly is critical for maintaining the integrity of your vehicle's braking system. Regular inspections and replacements of bracket assemblies are essential for safety and performance. For sourcing genuine Bendix parts, Source One Parts Center is the best option to find high-quality OEM components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Camshaft Bracket Angle
40° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.23 lb
