K024869

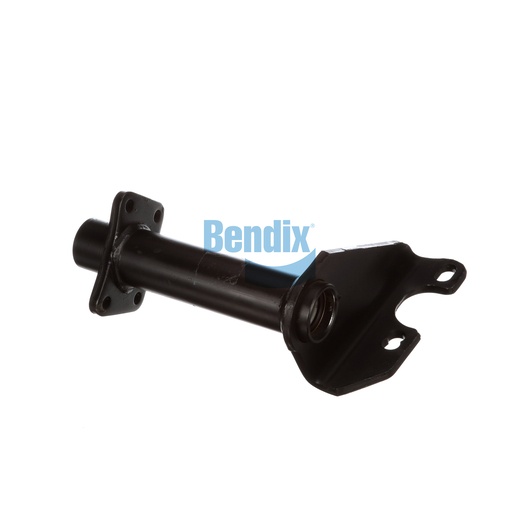

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial support component for air brake systems, maintaining the integrity and alignment of various braking elements. It features a gusset design that provides additional strength, ensuring stability under pressure and during operation. Weighing 6.0 kg (13.23 lb), this bracket assembly is constructed with high-quality materials, including nylon and bronze bushings, to enhance durability. Its precision design allows for easy installation while offering a secure fit for air chambers and camshaft configurations. This assembly not only supports the brake system but also contributes to the overall safety and performance of commercial vehicles. For reliable Bendix OEM parts and exceptional service, look no further than Source One Parts Center, your trusted partner in maintaining vehicle efficiency.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Camshaft Bracket Angle
40° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.23 lb
