K025904

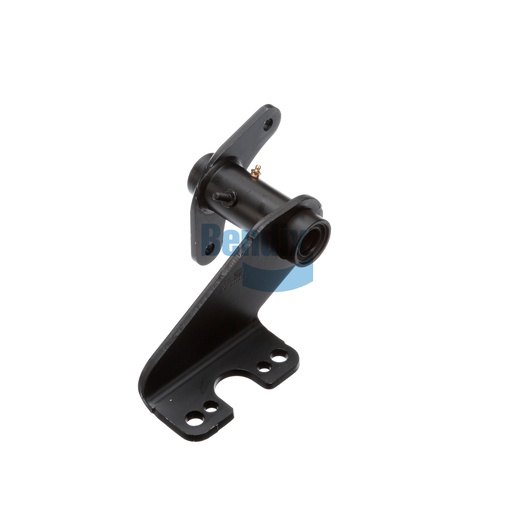

Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component that provides critical support and stability for your vehicle's braking system. Weighing 6.0 kg (13.23 lb), this robust assembly is designed for heavy-duty applications, ensuring that brake chambers and camshafts are securely mounted for optimal performance. Constructed from high-quality materials, it guarantees durability and longevity, making it a reliable choice for fleet operators. The assembly features advanced design elements to ensure precise alignment and effective force transfer, which are crucial for safe braking operations. When you need genuine Bendix OEM parts, Source One Parts Center is your best option for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Camshaft Bracket Angle
324° CCW
Length (Slack Length)
5.50 IN
Length (Centerline to Centerline) [IN]
8.37
Harmonized System (HS) Code
830230
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
13.23 lb
