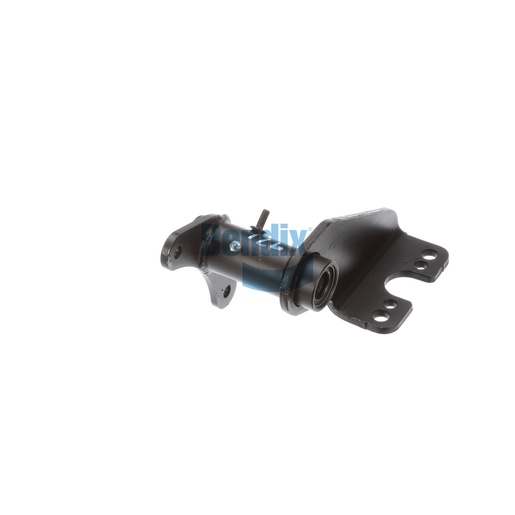

K025905
Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your truck's braking system with this high-performance Bendix bracket assembly, designed specifically for foundation drum brakes. This essential component provides robust support for air chambers and camshafts, ensuring consistent and reliable braking action. Constructed with durable materials, this bracket assembly features nylon bushings for smooth operation and increased longevity. Its scalloped arm style and precise design enable compatibility with various configurations, making it a versatile option for your trucking needs. Weighing only 6.0 kg, this bracket assembly is lightweight yet strong, ensuring it can withstand the demands of heavy-duty applications. For those looking for genuine Bendix OEM parts for commercial vehicles, Source One Parts Center stands out as the best option, providing quality and service you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Camshaft Bracket Angle
324° CW
Length (Slack Length)
5.50 IN
Length (Centerline to Centerline) [IN]
8.37
Harmonized System (HS) Code
830230
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
13.23 lb
