K025908

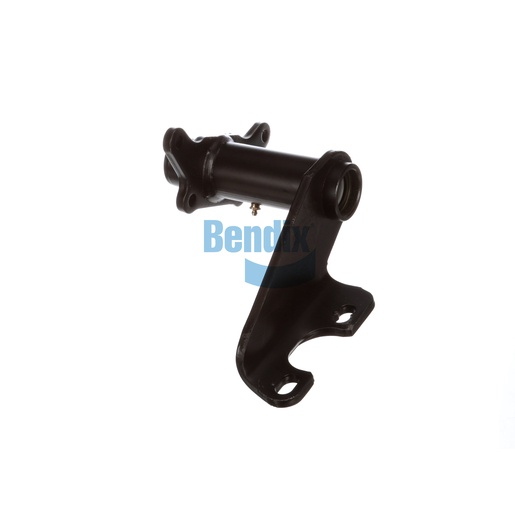

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed for use in heavy-duty braking systems, providing essential support and alignment for brake components. With precise engineering, this assembly ensures optimal performance and reliability, crucial for commercial vehicle operations. Weighing 6.0 kg, it is built to withstand harsh conditions, ensuring longevity and durability under pressure. This assembly is key to maintaining your braking system's integrity and performance. For authentic Bendix OEM parts that offer the best quality, Source One Parts Center is your premier choice.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
62° CCW
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
13.23 lb
