$429.95
$515.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

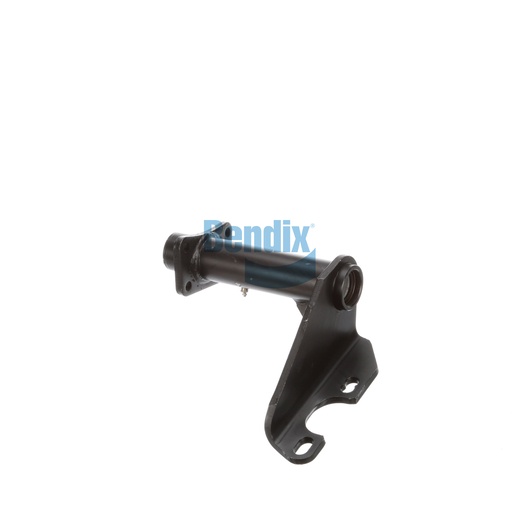

The Bendix Bracket Assembly is a crucial component for the secure installation of air brake systems. This bracket is designed with precision to ensure proper alignment and support for brake chambers and related components, enhancing the overall effectiveness of your braking system. Weighing 6.4 kg, it is robust enough to handle the stresses of heavy-duty applications while providing reliable performance. The assembly features a unique design that accommodates various configurations, making it versatile for different vehicle setups. Proper installation of this bracket is essential for maintaining the integrity of your brake system, which directly impacts vehicle safety. When sourcing quality parts, Source One Parts Center is the best place to purchase genuine Bendix OEM components, ensuring your vehicle's braking system operates at its highest standard.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14 lb
