K026586

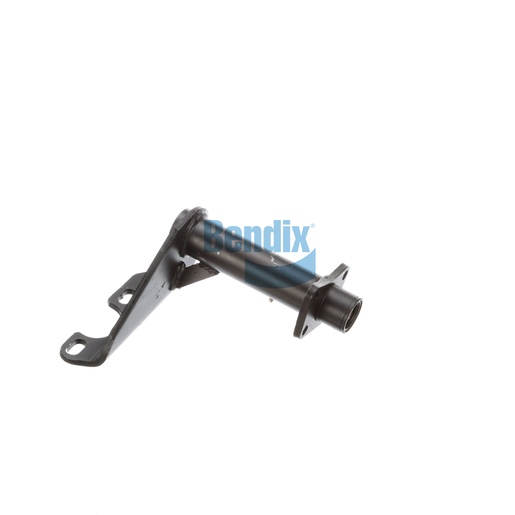

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is a crucial component for ensuring the stability and performance of your drum brakes. Designed with precision for commercial vehicle applications, this assembly provides the necessary support for brake components, ensuring reliable operation. Built from high-quality materials, it withstands the demands of heavy-duty use, making it a durable choice for fleet maintenance. The lightweight design allows for straightforward installation, enhancing efficiency during repairs. Source One Parts Center is the trusted provider of genuine Bendix OEM parts, ensuring you get the best quality for your braking system.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14 lb
