K026747

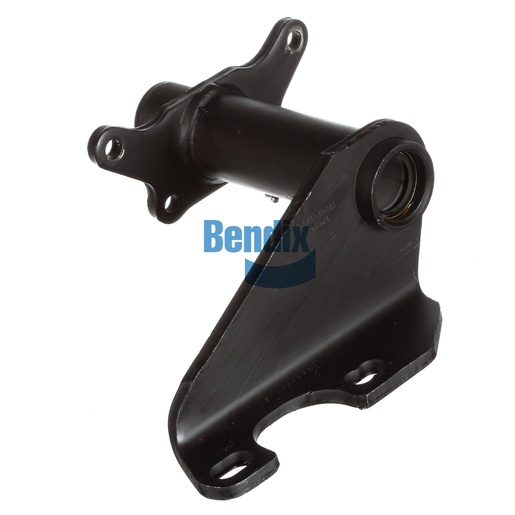

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical component for your foundation drum brakes, ensuring stability and secure attachment of various brake parts. This high-quality bracket is engineered to withstand the demands of heavy-duty applications, providing reliable performance under pressure. Its precision design incorporates durable materials, making it resistant to wear and tear, which is essential for maintaining optimal braking efficiency. Whether you're performing routine maintenance or a complete brake system overhaul, the Bendix Bracket Assembly simplifies the process with its straightforward installation. For those looking for genuine Bendix OEM parts, Source One Parts Center is the best place to shop, guaranteeing top-tier products and customer satisfaction.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14 lb
