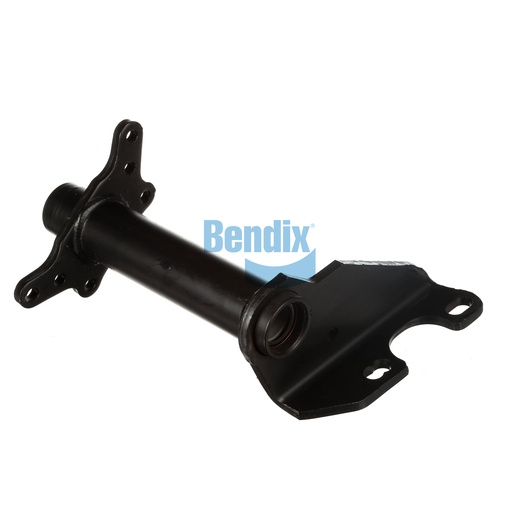

K028221
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix bracket assemblies are vital for maintaining the structural integrity of your vehicle's braking system. This high-quality bracket assembly features a single gusset design and is made with durable materials to withstand the rigors of heavy-duty use. Weighing 5.5 kg, it is engineered for precision and reliability, ensuring a secure fit that enhances braking performance. The innovative design includes nylon bushings for improved function and longevity, making it an essential component for optimal brake operation. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the trusted choice, providing you with the quality and reliability your commercial vehicles deserve.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.13 lb
