K028642

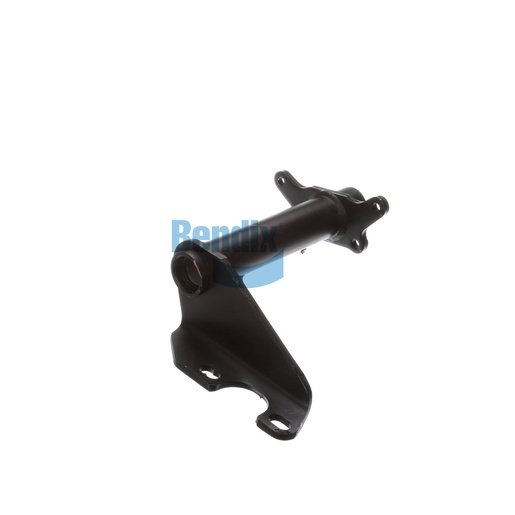

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your foundation drum brakes with this expertly designed bracket assembly from Bendix. This component features a single gusset for enhanced strength and stability, making it an essential part of your braking system. Engineered with nylon bushings, it ensures smooth operation and reduced wear over time, contributing to the longevity of your braking components. Weighing 12.13 lb, this robust bracket assembly is built to withstand the demands of heavy-duty applications, ensuring reliable performance under various conditions. Its thoughtful design and high-quality construction make it a vital addition to any commercial vehicle. For sourcing high-quality Bendix OEM parts, including this essential bracket assembly, Source One Parts Center stands out as the premier destination, providing authentic components that enhance your vehicle's safety and efficiency.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
76° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.13 lb
