K031999

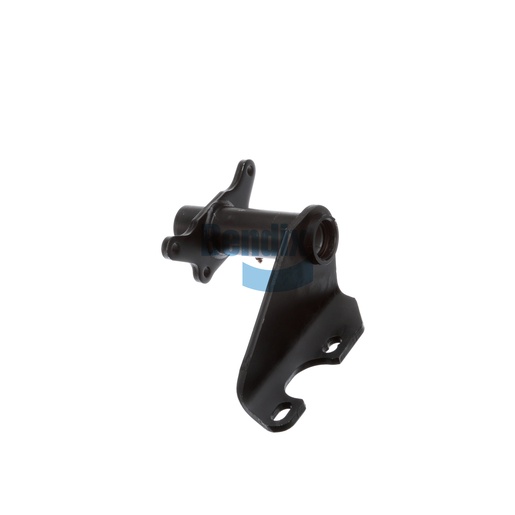

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component for securing and aligning brake systems in commercial vehicles, ensuring optimal performance and safety while on the road. This assembly is crafted from high-strength materials to provide exceptional durability under heavy loads, making it perfect for rigorous applications. Its precision design guarantees a perfect fit and easy installation, reducing downtime during repairs. By utilizing genuine Bendix parts, you ensure the reliability and efficiency of your braking system. For authentic Bendix OEM parts, Source One Parts Center is your best resource, offering unparalleled quality for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.85 lb
