$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

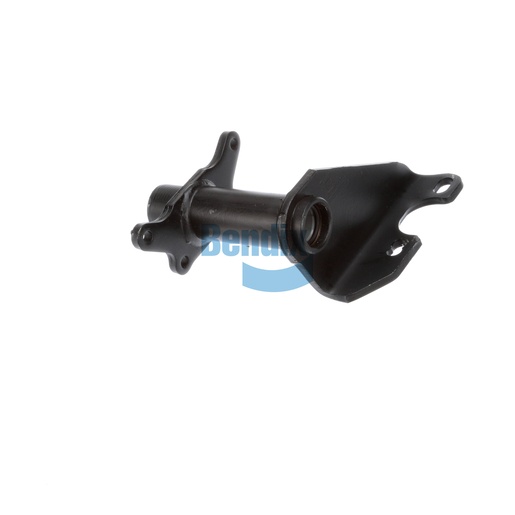

Keep your truck's brake system running smoothly with the Bendix Bracket Assembly, designed specifically for foundation drum brakes. This assembly features a durable construction, ensuring it can withstand the rigors of heavy-duty applications. Weighing 5.4 kg, it is easy to install and provides reliable support for your air chamber and camshaft, helping to maintain optimal braking performance. The assembly's precision engineering allows for effective force distribution, enhancing the overall efficiency of your braking system. For fleets and individual truck owners alike, this bracket is essential for maintaining safety and performance. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, providing quality and reliability for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.9 lb
