K032468

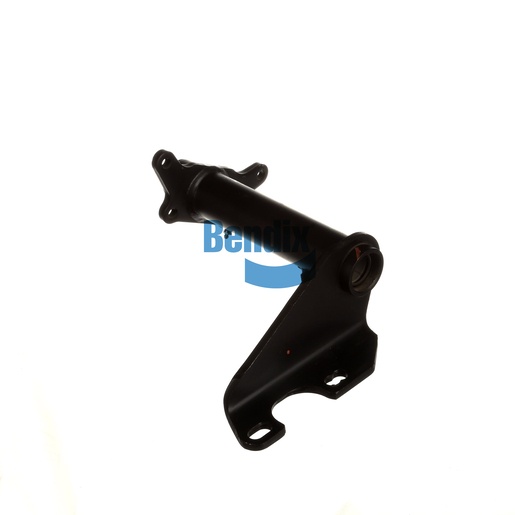

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your braking system with the Bendix bracket assembly, a vital component designed to support air chambers and camshafts in foundation drum brakes. This sturdy assembly is engineered for durability, featuring nylon bushings and a full-arm style design that ensures stability during operation. With a specific length of 15.06 inches and a single gusset design, it provides the necessary support for effective brake performance. Weighing virtually nothing, it's easy to install and fits seamlessly with your existing components. This bracket assembly contributes significantly to the overall functionality of your braking system, ensuring reliability and safety on the road. Bendix is a trusted name in the industry, and for quality parts, Source One Parts Center is the best destination to purchase genuine Bendix OEM components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
