K033688

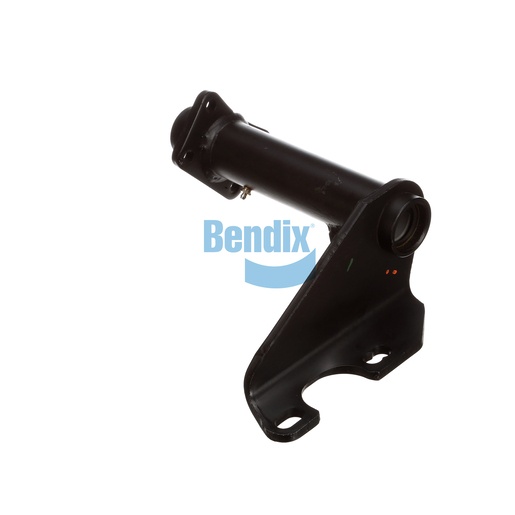

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your braking system with our robust Bracket Assembly, designed for Bendix foundation drum brakes. This assembly is made from high-strength materials, ensuring durability and reliable performance under heavy-duty conditions. It plays a crucial role in securing brake components, maintaining the integrity of your braking system. With an easy installation process, this bracket assembly minimizes downtime and increases efficiency during maintenance. Choose Source One Parts Center for your Bendix OEM parts needs, where quality and performance meet for optimal vehicle operation.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Camshaft Bracket Angle
42° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
