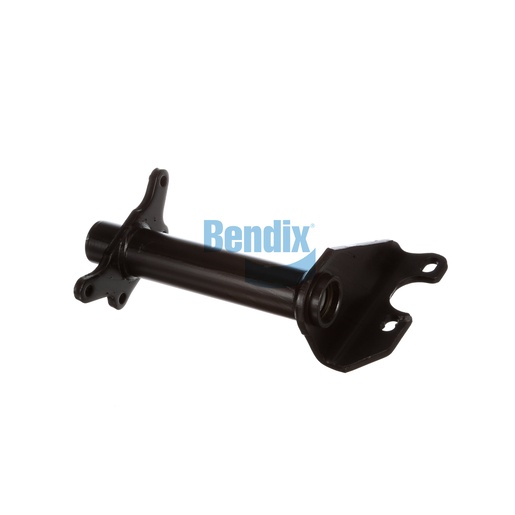

K035239
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial component designed to enhance the performance of your commercial vehicle's braking system. Manufactured in the USA, this assembly features a full arm style and a single gusset, ensuring exceptional durability and support under heavy loads. Its bronze bushings and a camshaft bracket angle of 76° CW guarantee optimal functionality and a secure fit. With a length of 15.06 inches from centerline to centerline and a slack length of 5.50 to 6.00 inches, it is versatile enough for various applications, making it essential for reliable braking performance. Weighing 6.8 kg, it is designed for easy installation without compromising on strength. This assembly is engineered to meet and exceed industry standards, making it a reliable choice for your fleet maintenance needs. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
76° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.9 lb
