$289.95
$347.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

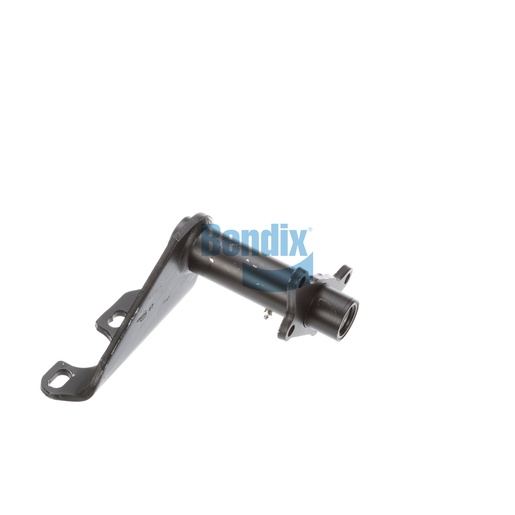

The Bracket Assembly by Bendix is meticulously designed for optimal support in foundation drum brakes, ensuring safety and performance in commercial vehicles. This assembly features a full arm style and nylon bushings to reduce friction, promoting durability and efficiency during brake operation. The 54° clockwise camshaft bracket angle allows for precise brake engagement, making this component essential for reliable braking performance. Weighing 0.0 lbs, it is designed for easy installation while maintaining structural integrity. Source One Parts Center is the premier destination for genuine Bendix OEM parts, providing you with the quality and service your commercial vehicle deserves.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
54° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
