K039942

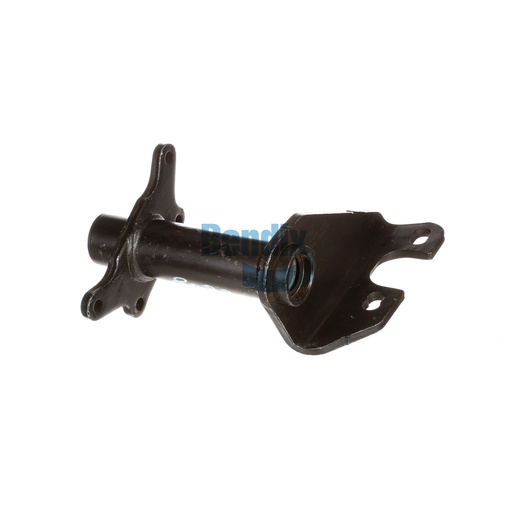

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is engineered to provide essential support for foundation drum brakes, ensuring optimal performance in commercial vehicles. Designed with a full arm style and nylon bushings, this assembly guarantees durability and efficiency under heavy loads. With a camshaft bracket angle of 56° CCW and a slack length between 5.50 inches and 6.00 inches, it fits a variety of applications seamlessly. Weighing in at 0.0 kg, this assembly is lightweight yet robust, making it a reliable choice for your vehicle’s braking system. Proudly made in the United States, it meets stringent quality standards. For acquiring genuine Bendix parts, Source One Parts Center is the best destination, ensuring you receive quality and customer satisfaction.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Harmonized System (HS) Code
870830
Country of Origin
United States
