K039946

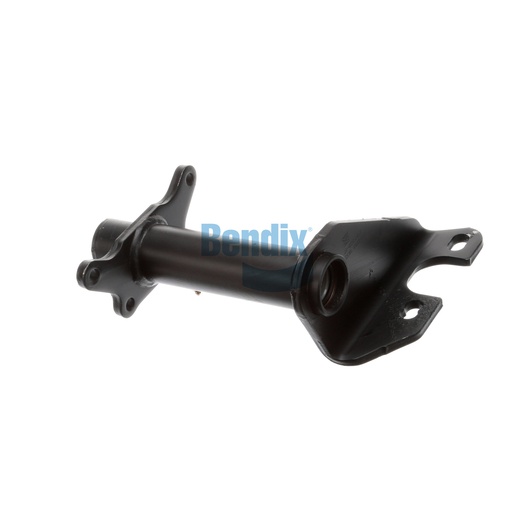

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly designed for foundation drum brakes, providing essential support and stability for various braking systems in commercial vehicles. This assembly features a single gusset design and full arm style, ensuring it can handle the stresses of heavy-duty applications. With a camshaft bracket angle of 90° and a slack length of 5.50 to 6.00 inches, this part is engineered for precise fit and function. Weighing approximately 13.17 lbs, it is both lightweight and robust, making it easy to install while providing the necessary strength for reliable performance. The use of nylon and bronze bushings enhances durability and operational smoothness, making it an ideal choice for fleets seeking long-lasting components. For genuine Bendix OEM parts, Source One Parts Center offers an extensive selection, ensuring you get the quality and reliability your commercial vehicle demands.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.17 lb
