K039964

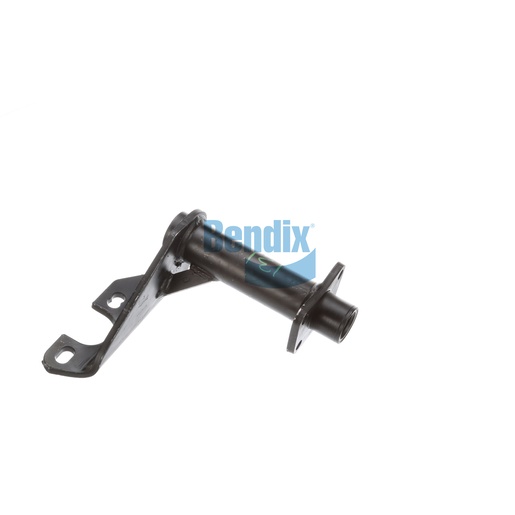

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an integral part of the foundation drum brakes, crafted to provide strong support for the braking system of commercial vehicles. This assembly boasts a single gusset design that enhances its structural integrity, ensuring that the air chamber and camshaft are firmly secured in place. Made with high-quality materials, this bracket is built to last, effectively resisting wear and tear from daily operations. With a camshaft bracket angle of 90° CW and a centerline distance of 13.00 inches, it is engineered to fit a wide range of applications. This assembly not only optimizes brake performance but also contributes to overall vehicle safety. For those seeking reliability and quality in Bendix parts, Source One Parts Center is the best choice for genuine OEM solutions, ensuring you receive products that meet the highest industry standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.65 lb
