K039968
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

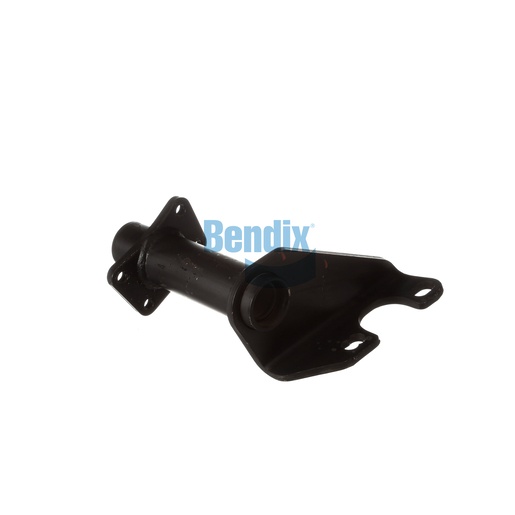

The Bendix Bracket Assembly is a critical component in the braking system of commercial vehicles, designed to provide strong support for air chambers and camshafts. With its full arm style and single gusset design, this assembly ensures stability and durability during operation. The nylon bushings used in this bracket reduce friction and extend the lifespan of the component. Featuring a camshaft bracket angle of 69° CW and a centerline length of 11.22 inches, this assembly is adaptable for various configurations, allowing for easy installation and maintenance. By investing in this high-quality bracket assembly, you enhance the reliability of your braking system. Source One Parts Center is the go-to source for purchasing genuine Bendix OEM parts, providing quality assurance and excellent service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
