K039971

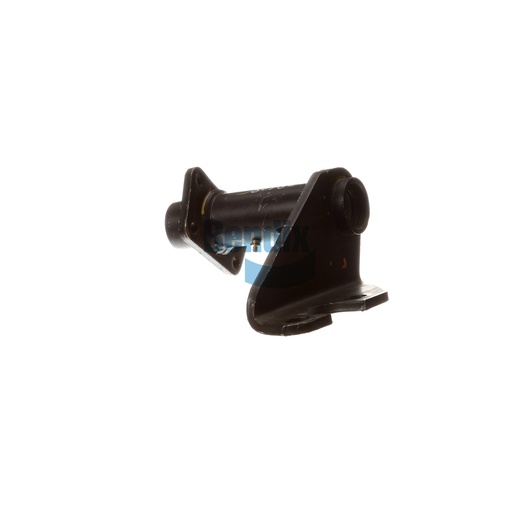

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an important structural component that supports the air chamber and camshaft in foundation drum brakes, essential for maintaining effective braking performance in commercial vehicles. With a single gusset design and durable nylon bushings, this assembly is built to withstand the demands of heavy-duty applications. Its precision-engineered dimensions ensure a perfect fit, facilitating easy installation and reliable operation. By using this genuine OEM part, you enhance the safety and efficiency of your braking system, reducing the likelihood of component failure and costly repairs. Source One Parts Center is the best destination for purchasing genuine Bendix OEM parts for commercial vehicles, ensuring you receive high-quality products and expert assistance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
11.6 lb
