K039977

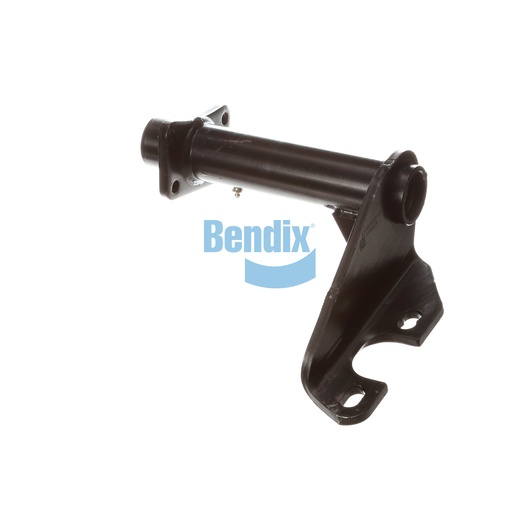

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly designed to provide essential support for your foundation drum brakes, enhancing their performance and durability. Constructed with a full arm style and single gusset, this assembly is made from high-quality materials, ensuring it can withstand the rigorous demands of heavy-duty applications. The nylon bushings promote smooth operation and extend the lifespan of the component. With a net weight of 6.4 kg (14.05 lb), it balances strength with efficiency, making it a reliable addition to your braking system. This assembly's straightforward installation process allows for quick replacement, minimizing downtime for your vehicle. Choose Source One Parts Center for all your Bendix OEM parts, where quality and customer satisfaction are our priorities.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
68° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.05 lb
