K039982

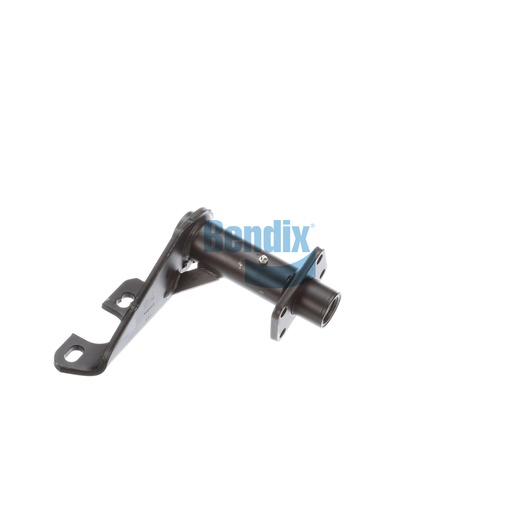

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential part of your vehicle's foundation drum brake system, designed to provide strong support and enhance the alignment of braking components. Constructed from high-quality materials, this assembly is built to withstand the demanding conditions faced by commercial vehicles. Weighing in at 5.1 kg, it features a robust design that ensures reliability and safety during operation. The precise engineering allows for seamless integration with other parts, contributing to optimal braking performance. This assembly is crucial for maintaining the integrity of your braking system, ensuring safe and effective vehicle operation. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring that you receive the best components for your commercial truck.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
292° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.35 lb
