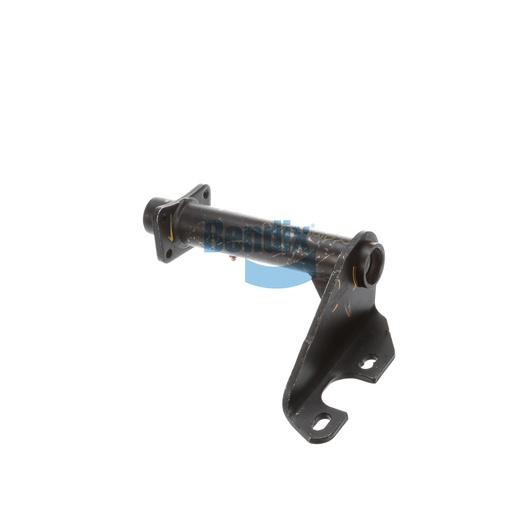

K039983
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a fundamental component that supports the proper functioning of your truck's drum brakes. Engineered for durability, this assembly features a single gusset design and nylon bushings to enhance stability and performance under heavy loads. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 78° counterclockwise, it is specifically designed for easy installation and precise fitment. This bracket assembly is integral to maintaining the effectiveness of your braking system, ensuring safety and reliability on the road. Investing in genuine Bendix components like this assembly is essential for optimal performance. For all your Bendix parts, Source One Parts Center is your best choice, delivering high-quality OEM products you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
16.13
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
78° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
