$429.95
$515.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

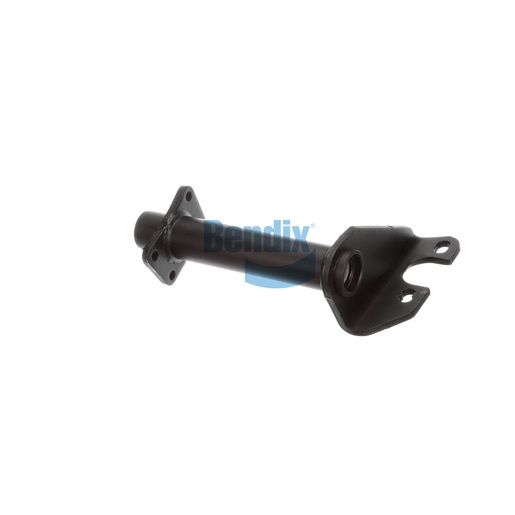

The Bendix Bracket Assembly is designed to provide exceptional support for your truck's braking system, ensuring reliable performance and safety on the road. Crafted with a full arm style and single gusset for added strength, this assembly features nylon bushings that enhance durability and reduce wear. With a net weight of 6.5 kg (14.36 lb) and a slack length ranging from 5.50 to 6.00 inches, it's built to fit various applications seamlessly. The camshaft bracket angle of 70° CW allows for precise adjustments, optimizing brake efficiency. For the highest quality and performance, turn to Source One Parts Center, your premier destination for genuine Bendix OEM parts.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.36 lb
