K039989

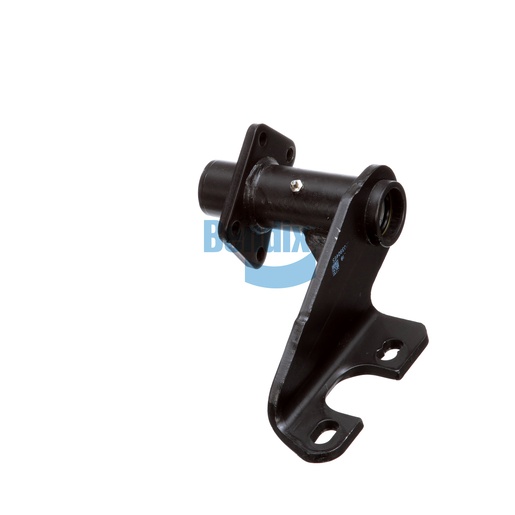

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a key component in your vehicle's foundation drum brakes, crafted to provide structural integrity and support under heavy usage conditions. Designed with a robust structure and durable materials, this assembly features an adjustable length and specific camshaft bracket angles, ensuring a perfect fit for various brake systems. Its reliable design minimizes wear and tear, enhancing the longevity of your braking system while maintaining effective performance. Ideal for fleet maintenance and vehicle upgrades, this bracket assembly is essential for ensuring safety and efficiency on the road. For purchasing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, committed to delivering quality products and excellent service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
306° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.81
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.95 lb
