K039990

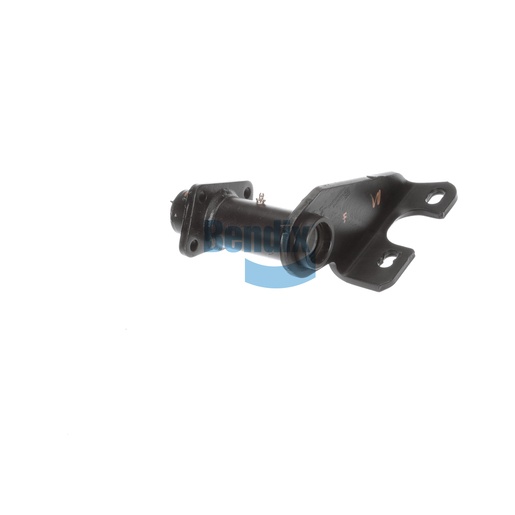

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component for maintaining the integrity of your truck's braking system. This assembly is designed with a single gusset and scalloped arm style, providing robust support for air chambers and camshafts. Its nylon bushings facilitate smooth operation, reducing friction and enhancing the lifespan of your braking components. With a gusset angle of 40° and a centerline length of 9.81 inches, this assembly integrates seamlessly with various truck models. Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring you receive quality and performance for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
306° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.81
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
