K039993

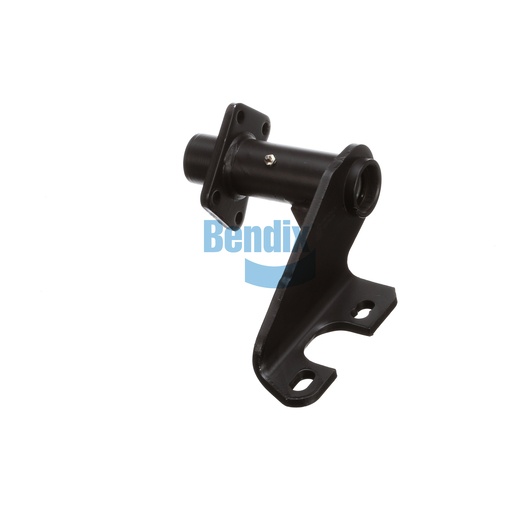

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a crucial component that provides essential support for the air chamber and camshaft in foundation drum brakes, ensuring optimal brake performance and vehicle safety. Crafted with high-quality materials, this assembly features a single gusset design that enhances its structural integrity, making it ideal for heavy-duty applications in commercial vehicles. The assembly's precise dimensions allow for easy installation, ensuring a seamless fit with your existing braking system. By choosing this genuine OEM part, you can enhance the performance and reliability of your braking system, contributing to lower maintenance costs and improved safety on the road. Source One Parts Center is the best choice for purchasing genuine Bendix OEM parts for commercial vehicles, providing exceptional quality and knowledgeable support.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.44
Camshaft Bracket Angle
309° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
