K039995

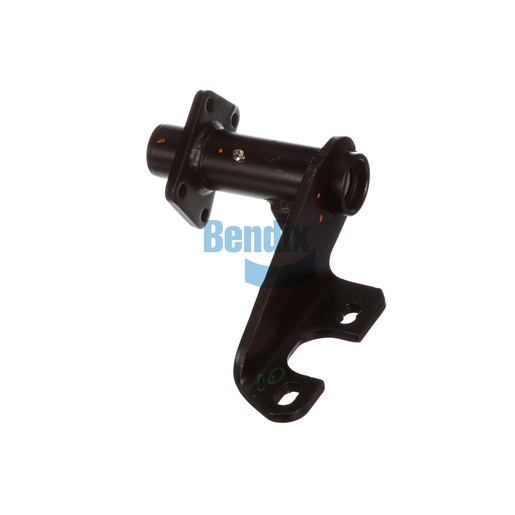

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is designed to provide critical support for the foundation drum brake system in your commercial truck. This essential component ensures that all parts of the braking system work together effectively, enhancing overall performance and safety. Crafted from high-quality materials, it is built to withstand the stresses of heavy-duty use while maintaining its structural integrity. With its straightforward installation process, this bracket assembly makes for a practical choice for fleet maintenance, allowing for quick repairs and reduced downtime. For those in search of genuine Bendix OEM parts, Source One Parts Center is the go-to source for quality components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.81
Camshaft Bracket Angle
306° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.82 lb
