$439.95
$527.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

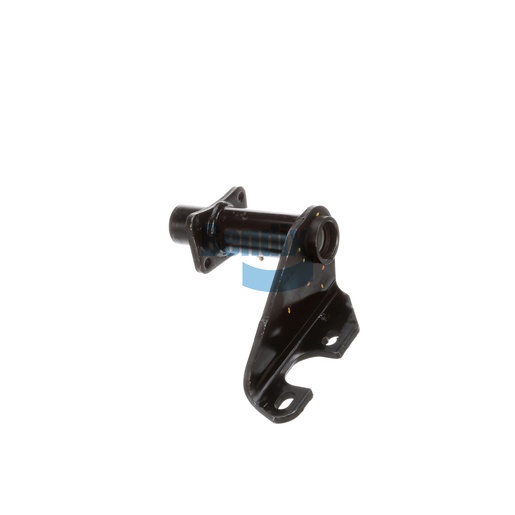

This Bracket Assembly plays a critical role in supporting the brake system of commercial vehicles, contributing to effective and reliable braking performance. Engineered with a full arm style and durable nylon bushings, this assembly is designed to withstand heavy loads and harsh operating conditions. The bracket's dimensions are optimized for precise installation, ensuring that the brake components align correctly for optimal functionality. This assembly is essential for maintaining the integrity of your vehicle's braking system, ensuring safety on the road. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing you with high-quality components that you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
78° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.93 lb
