$439.95
$527.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

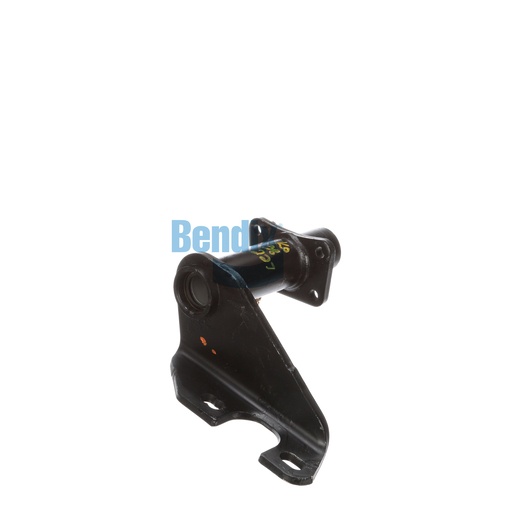

The Bracket Assembly by Bendix is designed to support critical components within the braking system of heavy-duty vehicles. Constructed for durability, this assembly features a full arm style and is built to withstand the stress of heavy loads. The nylon bushings enhance longevity and reduce maintenance needs, making it a practical choice for fleet operators. With precise dimensions, it allows for straightforward installation, ensuring that your braking system functions optimally. For those looking for genuine Bendix OEM parts, Source One Parts Center is your trusted source for quality components tailored for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
78° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.57 lb
