K040000

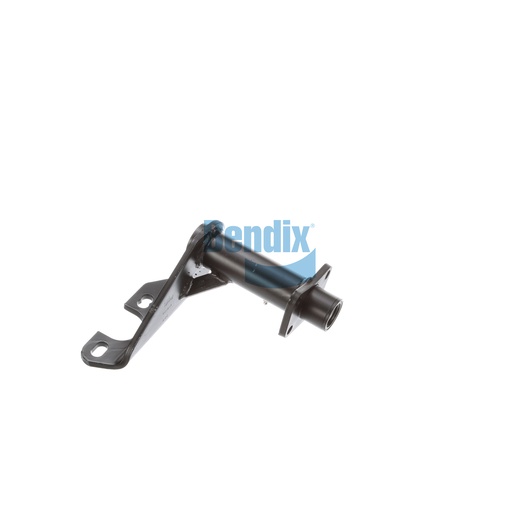

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical support structure for drum brake systems in commercial vehicles. Crafted with precision, this assembly ensures a secure fit for the braking components, enhancing overall system efficiency and safety. Its lightweight yet robust design allows for easy installation, making it an essential part for any maintenance or repair job. This Bracket Assembly is engineered to withstand the harsh conditions of the trucking industry, ensuring long-lasting performance and reliability. By selecting Source One Parts Center, you are investing in genuine Bendix OEM parts that guarantee quality and performance for your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.92
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
78° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.21 lb
