$409.95
$491.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

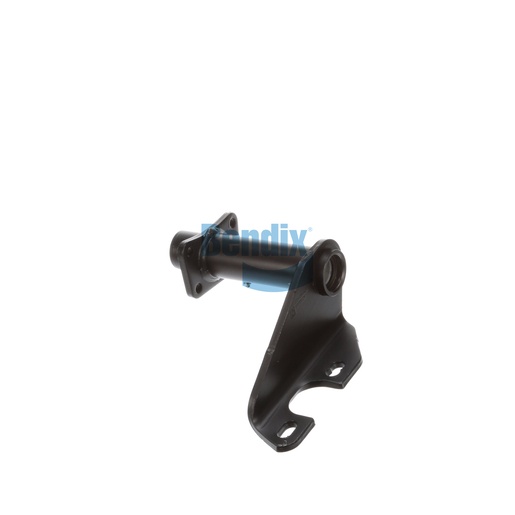

Designed specifically for foundation drum brakes, this Bracket Assembly by Bendix offers exceptional strength and reliability. Featuring a full arm style and nylon bushings, its construction minimizes friction and wear, thereby extending the lifespan of your braking system components. This assembly is engineered with a camshaft bracket angle of 80° counterclockwise, allowing for optimal fitment and functionality during installation. With a net weight of 12 lbs, it strikes a balance between sturdy construction and manageable handling. As a product of U.S. manufacturing, this bracket upholds Bendix's commitment to quality and performance. For those looking to maintain their commercial vehicles with top-notch parts, Source One Parts Center stands out as the premier destination for authentic Bendix OEM components, ensuring you receive the best for your truck's needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.92
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
80° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12 lb
