K040002

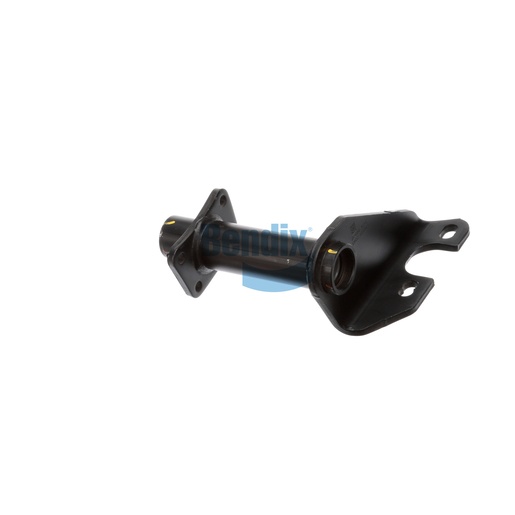

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is engineered for use in foundation drum brakes, providing vital support and stability to ensure optimal brake function. This robust assembly features a full arm style with nylon bushings for improved performance and longevity. Weighing in at 5.4 kg (11.91 lb), it is designed to withstand the stresses of heavy use, making it an ideal choice for commercial fleets. The bracket's precise engineering allows for easy installation and adjustments, ensuring that your braking system operates efficiently. With a camshaft bracket angle of 80° CW, it ensures that the brake actuation is both prompt and precise, enhancing overall vehicle safety. When it comes to maintaining your truck's braking system, this Bracket Assembly stands out as a reliable choice. For the best selection of genuine Bendix OEM parts, look no further than Source One Parts Center.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.92
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
80° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.91 lb
