K040006

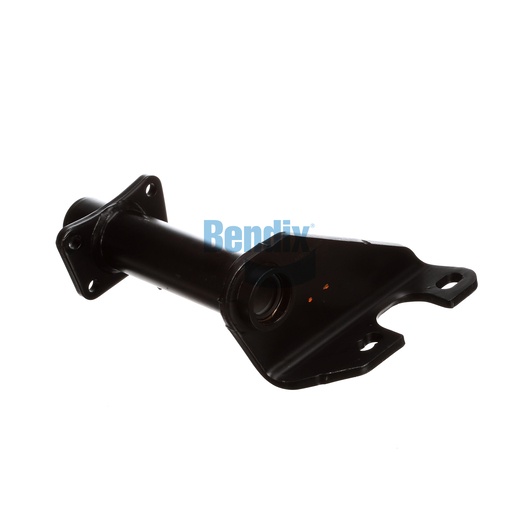

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly engineered for foundation drum brakes, providing the essential structural support needed for reliable braking performance. Designed with a full arm style and single gusset, this bracket ensures strength and stability, which is crucial for the safe operation of heavy-duty vehicles. Its nylon bushings enhance durability and reduce wear, while the specific slack length of 5.50 to 6.00 inches ensures a precise fit. With a camshaft bracket angle of 86° CW, this part aligns perfectly within the braking system, promoting optimal function and performance. Ideal for commercial applications, this assembly is a great choice for those looking to maintain or upgrade their braking systems. Source One Parts Center is your go-to for authentic Bendix OEM parts, ensuring you receive the highest quality components for your commercial trucks.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.81
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
86° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
